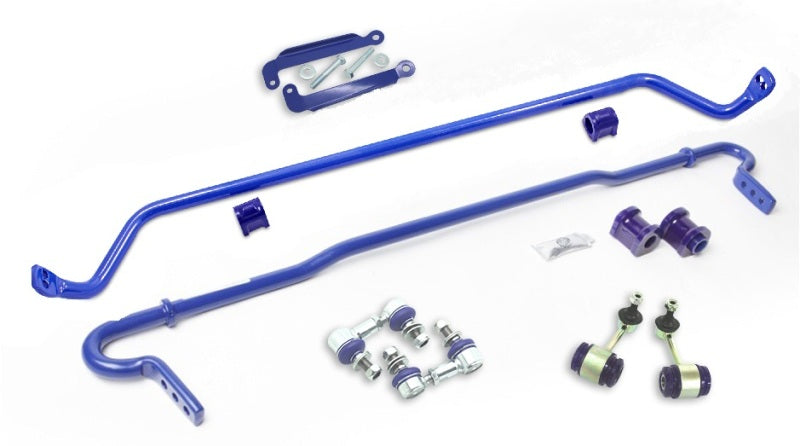

Sway Bars: What They Do and Why They Are Worth Upgrading

Sway bars, also called anti-roll bars or stabiliser bars, are one of the most effective handling upgrades available for a performance car. They reduce body roll through corners without stiffening the ride in a straight line, making them a practical upgrade for both street and track use. Understanding how sway bars work, how front and rear balance affects handling, and what supporting hardware is required will help you choose the right setup for your car.

What Is a Sway Bar?

A sway bar is a torsional spring that connects the left and right suspension to each other. It runs laterally across the car and is attached to the suspension on each side through end links. When the suspension on one side compresses relative to the other, the sway bar twists and resists that difference in travel. The stiffer the bar, the more it resists the unequal suspension movement that occurs during cornering.

How a Sway Bar Differs from a Stiffer Spring

A sway bar only generates force when the two sides of the axle are moving at different rates. When both wheels hit a bump simultaneously, the bar does not twist and generates no additional resistance. This is the key distinction between a sway bar and a stiffer spring. A stiffer spring increases resistance to all suspension movement including single-wheel bumps, which firms up the ride in a straight line. A sway bar firms up the suspension only in situations where one side compresses more than the other, which is primarily during cornering. The result is reduced body roll without a corresponding reduction in straight-line ride quality.

How Sway Bars Affect Handling

Reducing Body Roll

When a car corners, weight transfers to the outside of the turn and the outside suspension compresses while the inside suspension extends. This differential movement causes the body to roll toward the outside of the corner. The sway bar resists this differential movement and limits how much the body rolls. Less body roll means the tyres stay more perpendicular to the road surface, maintaining a larger and more effective contact patch throughout the corner.

Tyre Contact Patch and Grip

A tyre generates more lateral grip when it is running closer to vertical. As body roll increases, the tyre leans with the body and the contact patch reduces. Limiting body roll through sway bar stiffness keeps the tyre more upright through corners and maintains more of the available contact patch in contact with the road surface. More contact patch means more grip, which translates to higher cornering speeds and shorter stopping distances.

Front and Rear Sway Bar Balance

The balance between front and rear sway bar stiffness directly affects the handling balance of the car. Changing one bar without considering the other can produce results that are worse than the factory setup. Understanding how front and rear stiffness interact is essential before specifying an upgrade.

Stiffer Front Bar Relative to Rear

Increasing front sway bar stiffness relative to the rear increases understeer tendency. The front wheels have more roll resistance, which means it loses grip relative to the rear as the car pushes into a corner. The front end tends to run wide before the rear reaches its grip limit. For a daily driver this can feel predictable and safe. For a performance car it reduces cornering agility.

Stiffer Rear Bar Relative to Front

Increasing rear sway bar stiffness relative to the front increases oversteer tendency. The rear wheels have more roll resistance and lose grip relative to the front in corners. The car rotates more readily. On a rear-wheel-drive performance car a modest increase in rear bar stiffness relative to the front can improve rotation and responsiveness. On a front-wheel-drive or all-wheel-drive car, a significantly stiffer rear bar without a corresponding front increase can make the car unstable under cornering loads.

Balanced Front and Rear Upgrade

A balanced upgrade increases stiffness at both front and rear while maintaining or improving the factory handling balance. The goal for most performance street and track builds is to reduce overall body roll while keeping the front and rear balance within a range that suits the platform and the intended use. Most reputable sway bar manufacturers specify front and rear bar combinations for common platforms that are engineered to work together.

Types of Aftermarket Sway Bars

Solid Fixed-Rate Bars

Solid fixed-rate bars are a single stiffness, usually significantly stiffer than the factory bar. They are simpler in construction, generally less expensive than adjustable bars, and for a car with a fixed setup they are entirely appropriate. The stiffness is determined at the time of purchase and cannot be changed without replacing the bar.

Adjustable Bars

Adjustable sway bars have multiple attachment points for the end links along the bar arm. Moving the end link attachment point changes the effective lever arm length and therefore the torsional stiffness of the bar. A two or three position adjustable bar allows the effective stiffness to be changed without swapping the bar. For a dual-purpose car that needs different setups for street and track use, adjustable bars offer meaningful flexibility. The difference between the softest and stiffest positions on a quality adjustable bar is significant and noticeable in the car's handling behaviour.

Supporting Hardware

The effectiveness of a sway bar upgrade depends on the quality of the hardware connecting it to the suspension and the chassis. Worn or compliant hardware absorbs some of the bar's resistance before it reaches the suspension, reducing the benefit of the upgrade.

End Links

End links connect the sway bar to the suspension at each corner. Factory end links use rubber bushings that deflect slightly under load. Upgraded adjustable end links with spherical bearings or polyurethane bushings remove this compliance and allow the bar's full resistance to reach the suspension without absorption. Quality end links also allow the bar geometry to be set correctly for the ride height of the car, which is particularly important on a lowered build where the factory end link length may no longer be appropriate.

Sway Bar Bushings

The sway bar mounts to the chassis through rubber bushings at its centre section. These bushings allow the bar to rotate as it twists but factory rubber bushings also allow some lateral movement of the bar itself under load. Polyurethane replacement bushings reduce this lateral movement and sharpen the bar's response or solid aluminium mounts eliminate all lateral movement entirely and are standard practice on dedicated track cars.

How Sway Bars Interact with Other Suspension Components

Sway bar stiffness needs to be considered alongside the spring rates already in the car. On a car with stiff coilovers, the springs are already contributing significant roll resistance, so a moderate sway bar upgrade is appropriate. Stacking very stiff bars on top of an already stiff coilover setup can push total roll resistance beyond the point where the car handles predictably. On a car with standard suspension or lowering springs, the bars have more work to do and a sway bar upgrade will produce a more noticeable improvement in body roll because the baseline is greater. Either way, sway bar stiffness should be chosen with the rest of the suspension setup in mind, not in isolation.

What to Expect After Fitting Upgraded Sway Bars

On the Street

The car sits flatter through corners. Turn-in is sharper because the body is not leaning through the initial phase of the corner before the suspension loads up. Over single bumps and rough patches the ride quality change is minimal because both wheels are moving together and the bar is not being loaded. The improvement in cornering feel is noticeable without a significant compromise in ride comfort for a sensibly sized upgrade.

On Track

Corner entry is more consistent and predictable. The reduced body roll means less load transfer variation through the corner, which makes the car's balance more repeatable from one lap to the next. The driver can focus on braking points and lines rather than managing a chassis that moves around under cornering loads. On a car that was rolling significantly on factory bars, the improvement in lap consistency can be substantial.

Choosing the Right Sway Bar Upgrade

Street Use Only

A fixed-rate front and rear sway bar set from a reputable brand in a stiffness appropriate for street use. Pair with quality polyurethane bushings and fresh end links. The upgrade reduces body roll, improves turn in response, and improves tyre contact through corners without making the ride noticeably firmer in a straight line.

Dual-Purpose Street and Track Use

Adjustable front and rear bars allow the effective stiffness to be reduced for street use and increased for track use. Pair with adjustable end links that can be set correctly for the ride height of the car in each configuration. This gives meaningful flexibility for a car that needs to perform in both environments.

Dedicated Track Use

Stiffer fixed or adjustable bars suited to the spring rates of the coilover setup on the car. Solid aluminium mounts at the chassis mounting points. Adjustable end links set to the correct geometry for the ride height and alignment of the track setup. The specific stiffness required depends on the spring rates, the weight of the car, and the handling balance target for the build.
