Control Arm Bushings Offset - E46

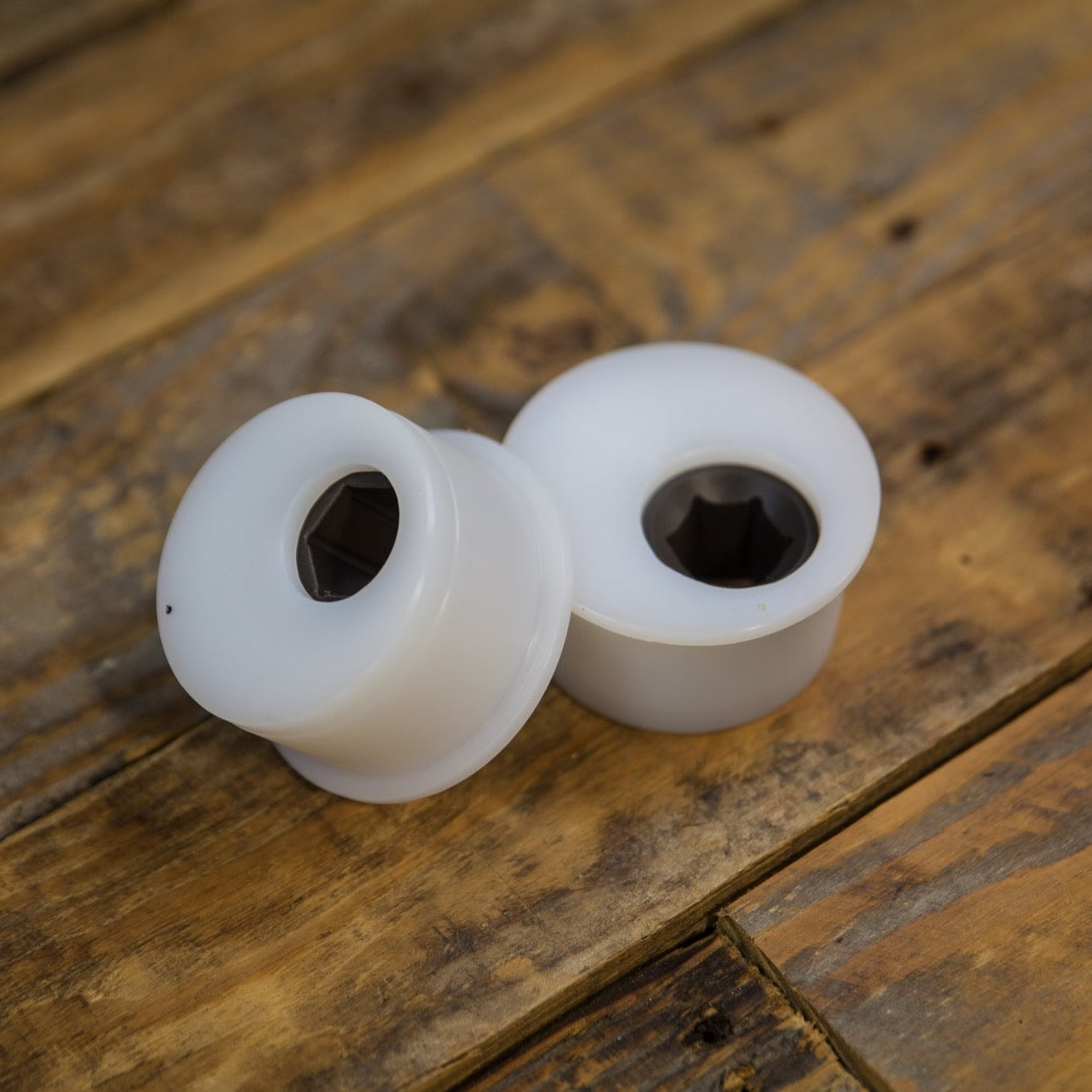

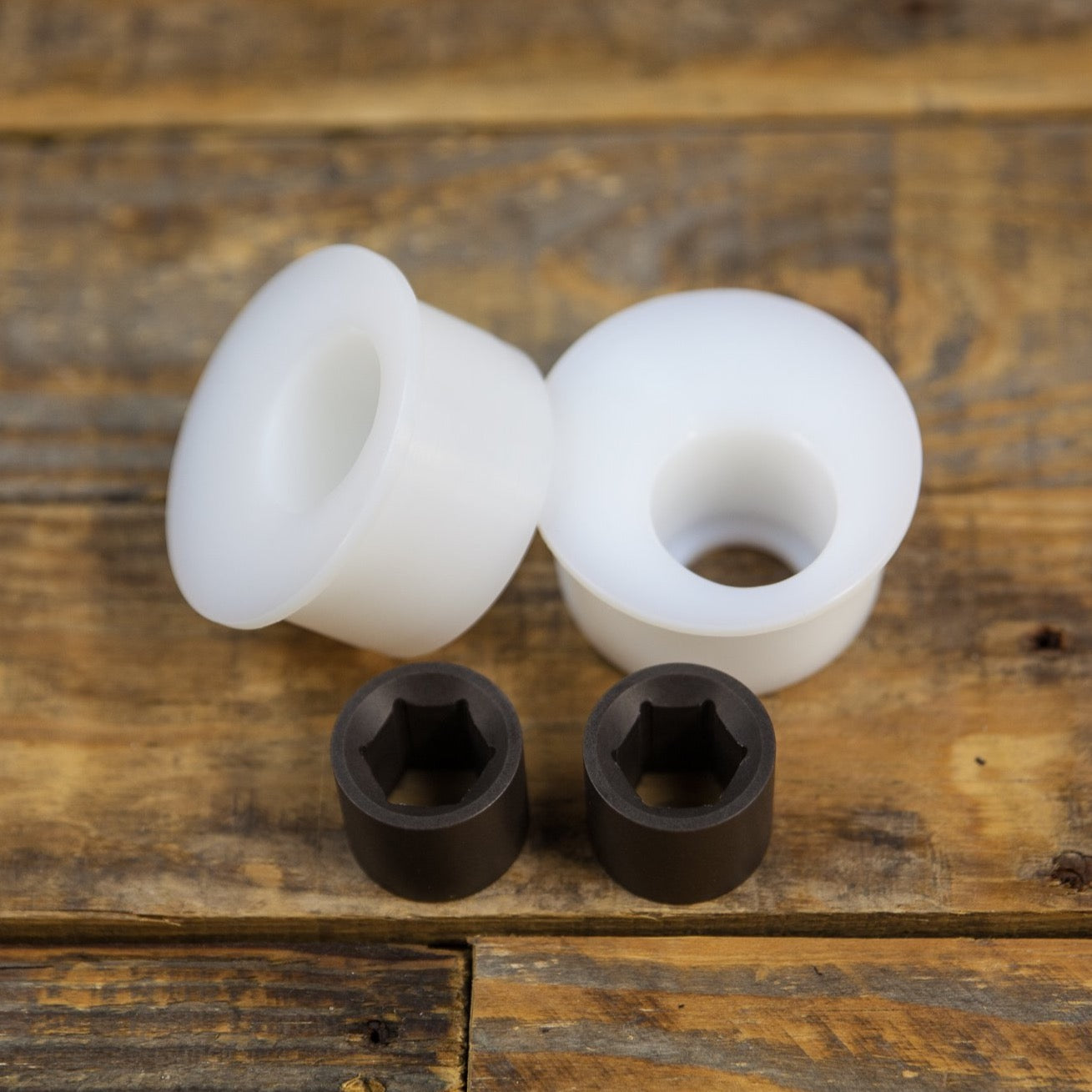

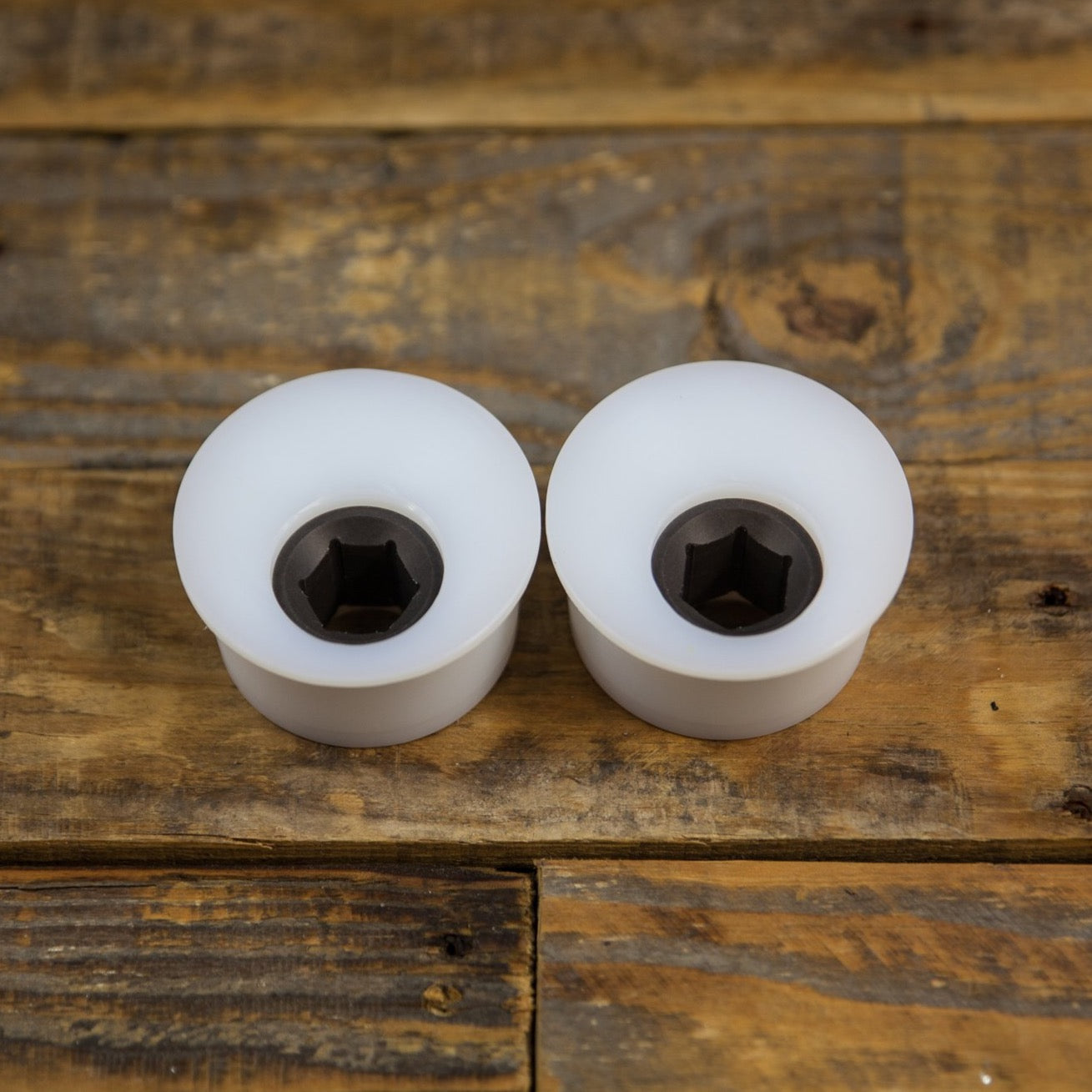

Condor Speed Shop BMW E46 control arm bushings are designed in two pieces; A UHMW bushing that presses into the stock BMW E46 carriers, and a special sleeve insert with a hexagonal cut-out. This sleeve insert is designed to fit over the hexagonal end on the E46 control arms. When installed, this sleeve will rotate with the control arm within the self-lubricated UHMW bushing. This solution allows for a very smooth control arm movement. These control arm bushings are offset, adding 3/4 degree of positive caster on each side!

These offset CABs are designed to fit all BMW E46 except Xdrive Wagon and BMW E46 M3 (1998-2007) We suggest you measure the size of the Hex on your control arm before ordering. Choose 21mm or 23mm in the drop-down.

The following Meyle and Lemforder arms require our 21MM Hex:

• LEMFORDER ZHP - 31 12 2 282 121 & 31 12 2 282 122

• LEMFORDER - 31 12 6 777 851 & 31 12 6 777 852

• MEYLE HD - 31 12 6 777 851 & 31 12 6 777 852

Meyle makes a standard e46 control arm and a heavy-duty control arm. Most HD arms have a 23MM hex. CABs can be pressed into new carriers by clicking here after adding these bushings to your cart. Not looking for offset? Check out our classic centered version!
