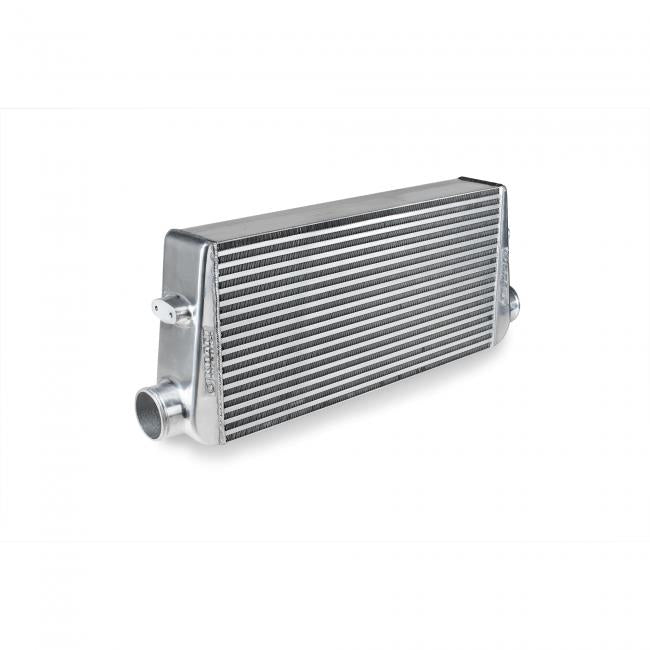

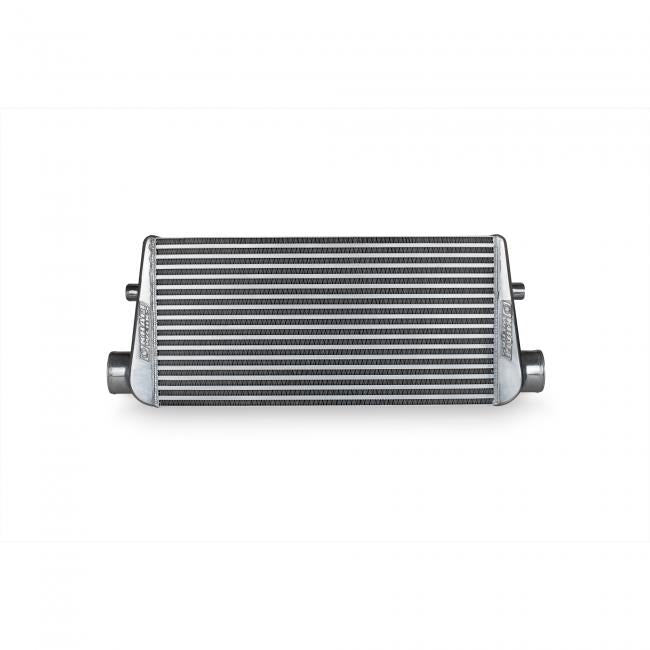

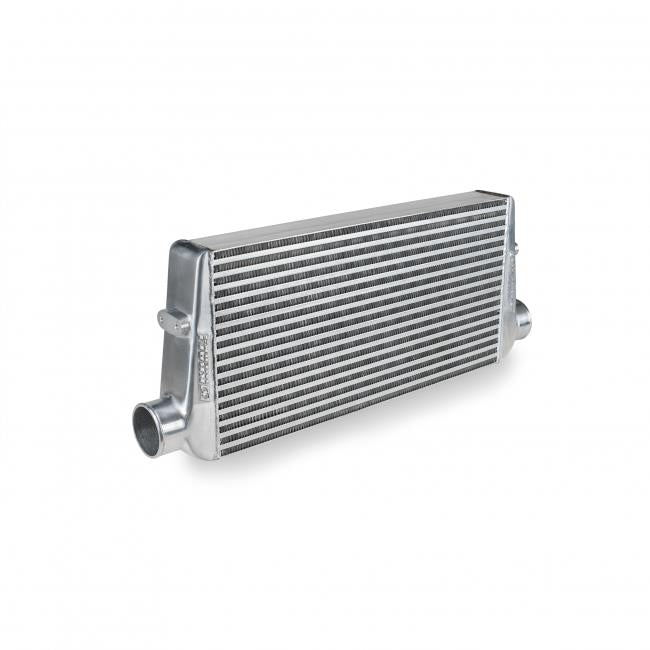

KraftWerks Universal Intercooler - 31 x 12 x 4 in Core, 3 in Inlet & Outlet

Boost makes heat. A supercharger raising manifold pressure also raises intake air temperature, and hot air carries less oxygen while bringing detonation closer. An intercooler sits between the compressor outlet and the throttle body and pulls that heat back out of the charge before it reaches the engine.

KraftWerks developed these cores for its own turn-key supercharger systems and now sells them as standalone parts. Construction is all aluminium with cast aluminium end tanks, TIG welded throughout. Mounting points are universal, so the core can be positioned to suit your car rather than one application.

Sizing is the decision here. Core face area and thickness set how much heat you can reject, and the inlet and outlet diameter has to match your charge piping. Measure the space you have first. This core is 31 in L x 12 in H x 4 in T, and a core that will not fit behind your bumper support is a core you cannot use.

Features

• All-aluminium core and end-tank construction
• Cast aluminium end tanks
• TIG welded throughout
• Universal mounting points, so positioning is not fixed to one vehicle
• Core specification proven in KraftWerks turn-key supercharger systems
• Reduces intake air temperature ahead of the throttle body
• 3 in inlet and outlet

Specifications

• Part Number: 145-99-0040
• Core Size: 31 in L x 12 in H x 4 in T
• Inlet and Outlet: 3 in
• Construction: All-aluminium, cast end tanks, TIG welded
• Fitment: Universal

Before You Order

• Measure your available space against the core dimensions above. This is a universal part with no vehicle-specific bracketry.
• Charge piping, couplers, and clamps are not included.
• KraftWerks lists universal mounting points on the core and does not publish an included hardware list. Plan your mounting before the core arrives.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov. Check the legality of aftermarket forced-induction parts in your state and locality before purchase. Some items are intended for off-road use only.
